Power Up to 2.400 kW & Voltages Up to 11.000 V
Frame 71 ÷ 560, Poles 2, 4, 6, 8 and 10
Cooling IC 411 ( IC 416 optional)
IP 56 or IP 65 (IP 65 not available for A6C and A5C)
Enclosure TEFC MOTORS – Totally Enclosed Fan Cooled
Main Applications Cement, Chemical, Manufacturing processes, Metals, Mining, Power, Pulp and paper, Sugar mill, Water pumping and treatments sector Industrial.

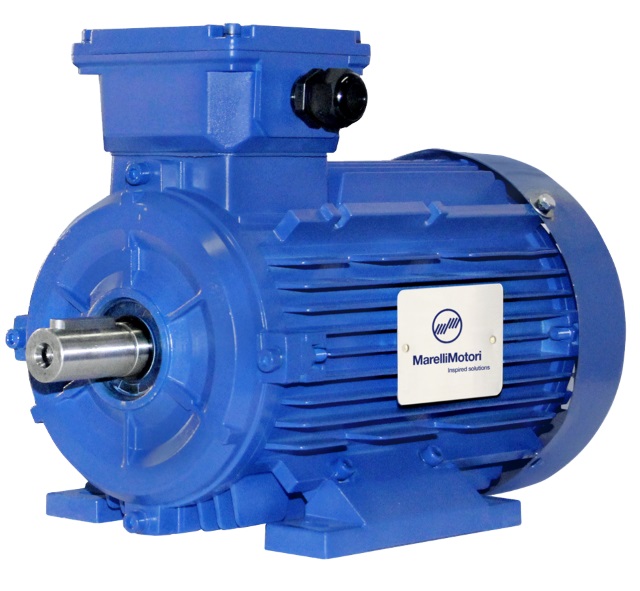

A1C Models-Alumunuim Frame-IE1W
B1C Models-Cast Iron Frame-IE1
Rated outputs and efficiency values are in accordance with IEC 60034-30-1
all parameters are measured in accordance with IEC 60034-2-1
continuous duty (S1) with sufficient thermal margins to withstand short overloads
IP 55 protection degree
Insulation class F / Temperature rise class B
+ 40°C maximum ambient temperature.
1000 m a.s.l. installation.
Drive end locked bearing from 160 mm frame size.
PTC in main terminal box from 160 mm frame size.
Grease nipples (drive end and non drive end) as standard from 160 mm frame size.
